ROCLAS fiber laser cutting machine RCL3015

In modern manufacturing, fiber laser cutting machines have been widely used due to their excellent performance. Especially in the field of metal processing, compared with traditional cutting methods, laser cutting has fast speed, high precision, can cut various types of metals, and has low cutting and maintenance costs. Today I will introduce a ROCLAS fiber laser cutting machine to everyone.

The machine body is surrounded by a shield to avoid damage to the machine caused by external force impact and protect the safety of the machine. It can also prevent damage to the human body during machine processing. At the same time, it can effectively prevent dust from entering the machine and avoid machine failures caused by dust accumulation. The interior of the machine has been optimized and the excellent air duct design has been made to avoid machine failures due to heat dissipation problems.

The door in front of the machine adopts a lifting design with a large lifting range, which is convenient for operators to load and unload materials. At the same time, the laser head can be fully seen when the door is raised, which is conducive to the operator to view the laser head and facilitate debugging. There is also an observation door on the side of the machine to facilitate the operator to monitor and debug various parts of the machine.

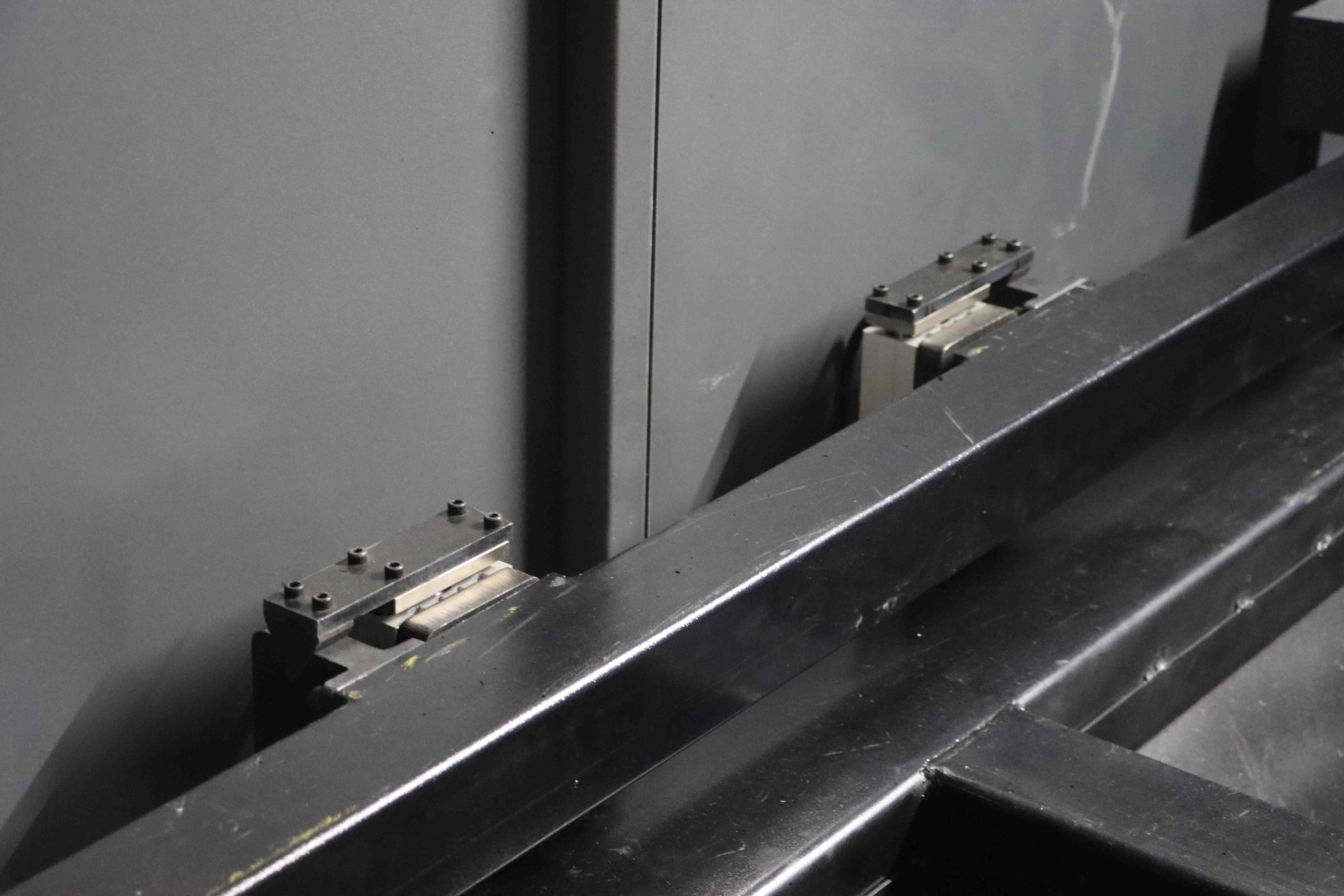

The machine table adopts a pull-out table design to facilitate operators to load and unload cutting materials. During processing, the positioning cylinder inside the machine will lock the table in the specified position to ensure the processing accuracy of the machine. A push-pull storage board is designed under the table, which can easily collect the fallen cutting materials to avoid material waste, and is also convenient for cleaning and keeping the machine tidy.

Although the machine is surrounded by a large shield, the dust cover is still configured on the internal transmission system to further prevent dust from entering the transmission parts, ensure the stability of the transmission system, and guarantee processing accuracy.

The machine is equipped with a large-scale dark acrylic plate observation window, which can not only clearly observe the processing process of the machine, but also prevent the eyes from being damaged by the strong laser light. At the same time, the observation window range is large, and there is a comfortable observation angle for people of different heights.

The laser source adopts MAX laser source, which has stable power and good cutting effect. The laser power can be customized according to customer needs, ranging from 3KW to 12KW. The laser head adopts Raytools laser head, which has superior performance and the edges of the cut materials are smooth and burr-free. The control system uses Raytools control system, with a graphical interface, intuitive and efficient operation, optimized cutting path, improved processing efficiency, reduced waste generation, and improved production efficiency.

The drive motor adopts the Leadshine servo motor, which has fast response speed, smooth operation and ensures processing accuracy. All electrical components adopt well-known brands to ensure that the machine is stable and reliable.

The machine supports customization and can be personalized according to the specific needs of customers. Provide perfect after-sales service and free technical support to ensure that customers have no worries during use.

If you want to know more details about this machine, visit ROCLAS Laser immediately and contact us, we will provide you with more information about the machine.
